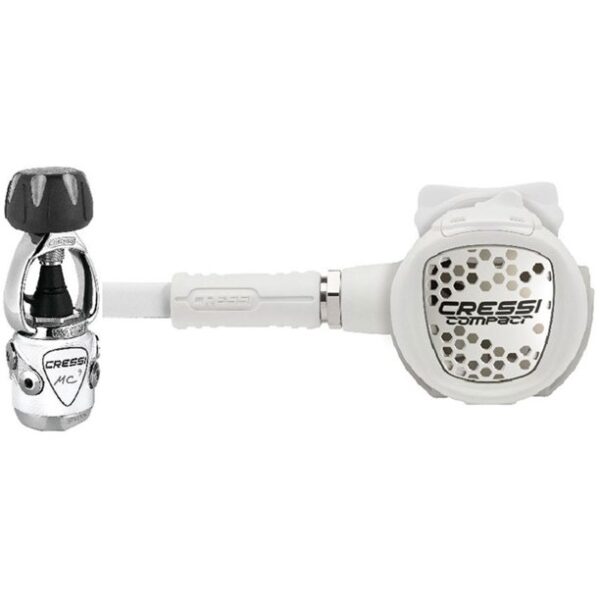

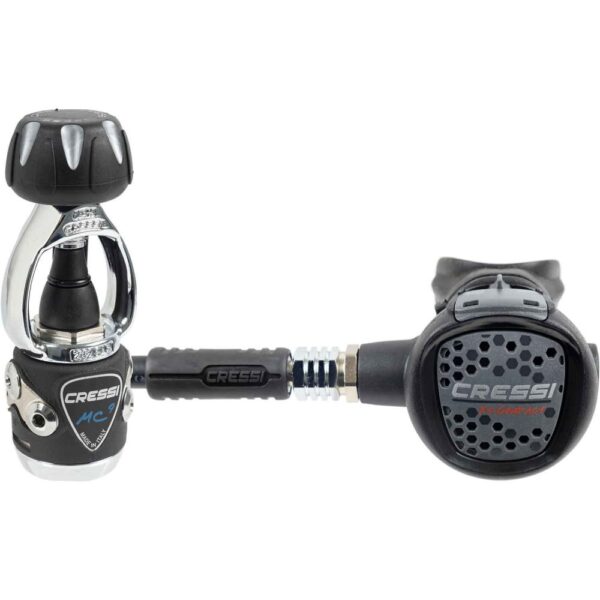

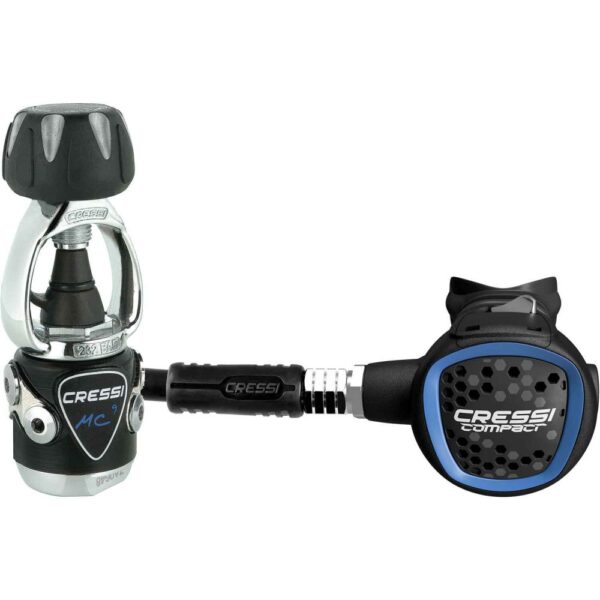

Cressi MC9 Compact Regulator

Description

Cressi MC9 Compact Regulator

This premiere travel regulator packs maximum performance into minimum space.

A true featherweight second stage, the Cressi MC9 Compact Regulator is built from lightweight techno-polymers to eliminate jaw fatigue. Easy to pack and easy to dive with, the Compact includes dive/pre-dive Venturi switch for managing free-flow and maximizing performance at depth.

TECHNICAL FEATURES 1ST STAGE:

• Balanced diaphragm (seal chamber for MC9SC)
• 2 outlets HP 7/16 UNF
• 4 outlets MP 3/8 UNF
• Service pressure: 300 bar (4350 psi) DIN version, 232 bar (3365 psi) Yoke version
• Calibration pressure: 10 Bar
• Brass body Electroless Nickel plated
• High capacity conical filter electroless nickel plated
• Aisi 316 removable nozzle
• Hyper-balancing
• Anti-pressure drop pneumatic spring
• Setting spring: stainless steel with micro peening treatment
• Replaceable cylinder with anti-friction and anti-corrosion properties
• Elastomer protector
• Flow rate: 4500 l/min
• Yoke version weight: 590 gr
• Din version weight: 450 gr

TECHNICAL FEATURES 2ND STAGE:

• Downstream system
• Adjustable Venturi effect
• Patented anti-friction lever
• Big purge button
• Anti-scratch surface
• Bayonet-type cap holder with security lock
• Removable exhaust tee
• Weight without hose: 135 gr
• Average Cracking effort 6 mbar
• Average breathing effort 1 J/l
• Jacketed hose extremely light and flexible weight: 153 gr
• Certification EN250/2000
